FARIA BEEDE INSTRUMENTS

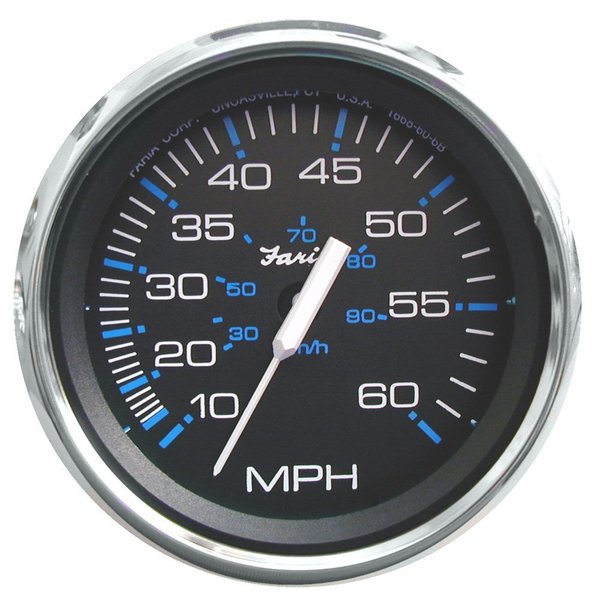

Chesapeake Black 4 Speedometer 60Mph Pitot
Mfr # 33704. Chesapeake Black 4 Speedometer 60MPH Mechanical Perimeterlighted Black dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens Electronic speedometers operate by capturing pulses produced by a sensor the pulses are then electronically converted to a speed reading very much like a tachometer converts ignition pulses to RPM Pitot tube type speedometers operate by pressure from the water being forced into the pitot tube This pressure is then transmitted through flexible tubing to the bourdon tube movement inside the speedometer head where it is converted into a speed reading by the movement mechanism Pitot tube sold separately 4 Hole Size 3375 85mm Specifications Antiscratch glass lens 12 VDC negative ground Can be adapted for 24 VDC systems Dual Scale Metric and Imperial Factory PN SE9509 Sold as an Individual Gauge Cover not Included Chesapeake Black 4 Speedometer 60Mph Pitot
