FARIA BEEDE INSTRUMENTS

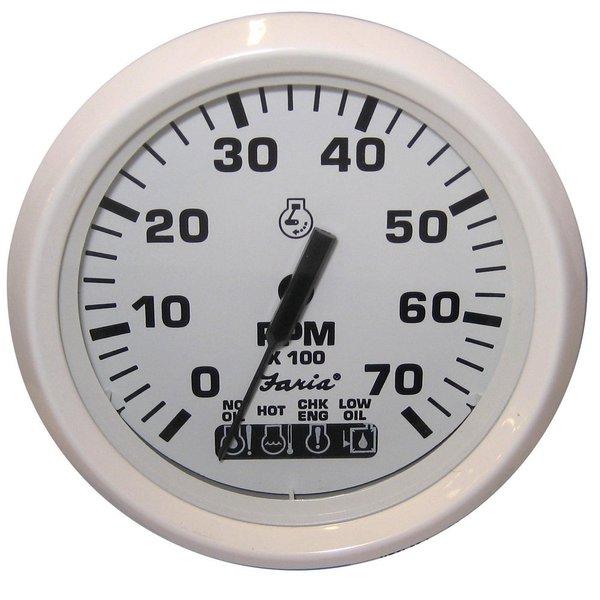

Dress White 4 Tachometer W Systemcheck Gas
Mfr # 33150. Dress White 4 Tachometer wSystemcheck Indicator 7000 RPM Gas Johnson Evinrude Outboard Perimeterlighted White dial with bold Black graphics, White aluminum bezel, contoured Black pointer and flat glass lens Tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender The tach is hooked up to 12VDC, Ground and one of the signal sources listed By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution These tachometers have a warning light system built into the dial that show off warning indicators when a fault is detected from the engine 4 Hole size 3375 85mm SystemCheck Warnings No Oil Engine Overheat Check Engine Low Oil For Engine Types JohnsonEvinrude Outboard Specifications Antiscratch glass lens 12 VDC negative ground Can be adapted for 24 VDC systems Factory PN TC9887 Sold as an Individual Gauge Cover not Included
