JOHNSON PUMP

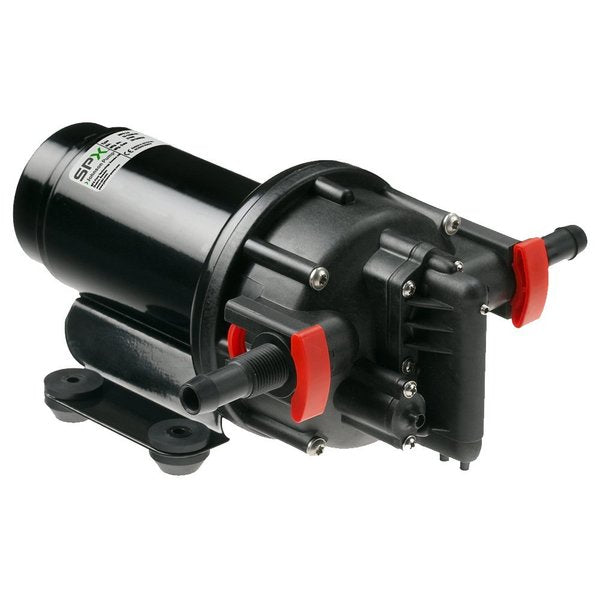

Aqua Jet 3.5 GPM Water Pressure System - 24V
Mfr # 10-13395-104. Aqua Jet Water Pressure Systems - 3.5GPM - 24V The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake. Diaphragm: Santoprene Valves: EPDM Body: PP/PPA Motor: 85W Capacity: 13 l/min - 3.5 GPM Pressure Cut Off: 2.8 bar - 41psi Fuze Size: 5 A Connection: 3/8" NPT/hose 1/2", 1/2"NPT/Hose 3/4", 1/2" NPT, 3/4" Hose Weight: 2 kg /4.5lbs Length: 236,5 mm/9.31" Width: 210 mm/8.25" Height: 116 mm/4.575"
