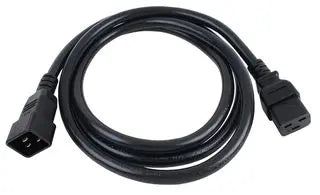

Mains Power Cord, IEC 60320 C20 to IEC 60320 C19, 1.8 m, 20 A, 250 VAC, Black

Description

A heavy-duty, high-performance extension cord designed for demanding power connections in data centers, servers, network infrastructure, and high-output electronics. Ideal for linking power distribution units (PDUs), uninterruptible power supplies (UPS), or blade server chassis with IEC-C19/C20 interfaces.

Key Specifications & Features

• Connector Type: IEC-320 C20 (male) to IEC-320 C19 (female)
• Length: 6 ft (1.83 m)
• Current Rating: 20 A
• Voltage Rating: 250 VAC
• Wire Gauge: 12 AWG (heavy gauge for high-current applications)
• Cable Jacket: PVC / SJT rated, with VW-1 flame rating
• Outer Diameter: ~11 mm
• Operating Temperature Range: –4 °F to 140 °F (–20 °C to 60 °C)
• Certifications & Compliance: UL Listed, cUL Listed, RoHS compliant
• Warranty: Lifetime limited warranty from Tripp Lite / Eaton

Benefits & Use Cases

• Supports High Power Loads
  With 12 AWG conductors and 20A rating, this cord reliably handles heavy current draw needed by servers, blade chassis, PDUs, and other high-load equipment.
• Flexibility in Rack or Cabinet Layouts
  The 6-foot length gives you flexibility to position devices in relation to power sources without stress on cables.
• Quality & Safety in Design
  Flame-rated jacket and solid IEC connectors ensure robust performance in demanding environments while meeting safety standards.
• Plug-and-Play Extension or Replacement
  Use this cord to extend or replace original power cables for devices with C19/C20 power connections, while maintaining required capacity.
• Reliable for Data & IT Environments
  Commonly used in data centers, server rooms, or network closets where high-reliability power cabling is essential.

Installation & Usage Tips

1. Ensure Proper Polarity & Fit
   Always check that your device’s C19 inlet matches the orientation and secure seating of the connector.
2. Avoid Bends Too Tight
   Maintain gentle curves in the cord to avoid damage to the internal conductor insulation.
3. Use Proper Cable Management
   Secure with cable organizers or strain-relief to prevent tugging or connector stress.
4. Monitor Under Load
   If placing in environments with high ambient heat, ensure the cable is not de-rated or overheating under heavy loads.
5. Inspect Periodically
   Look for cracks, jacket cuts, discoloration, or connector wear; replace immediately on any anomaly.
