Description

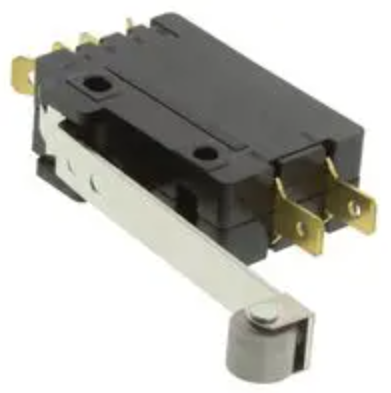

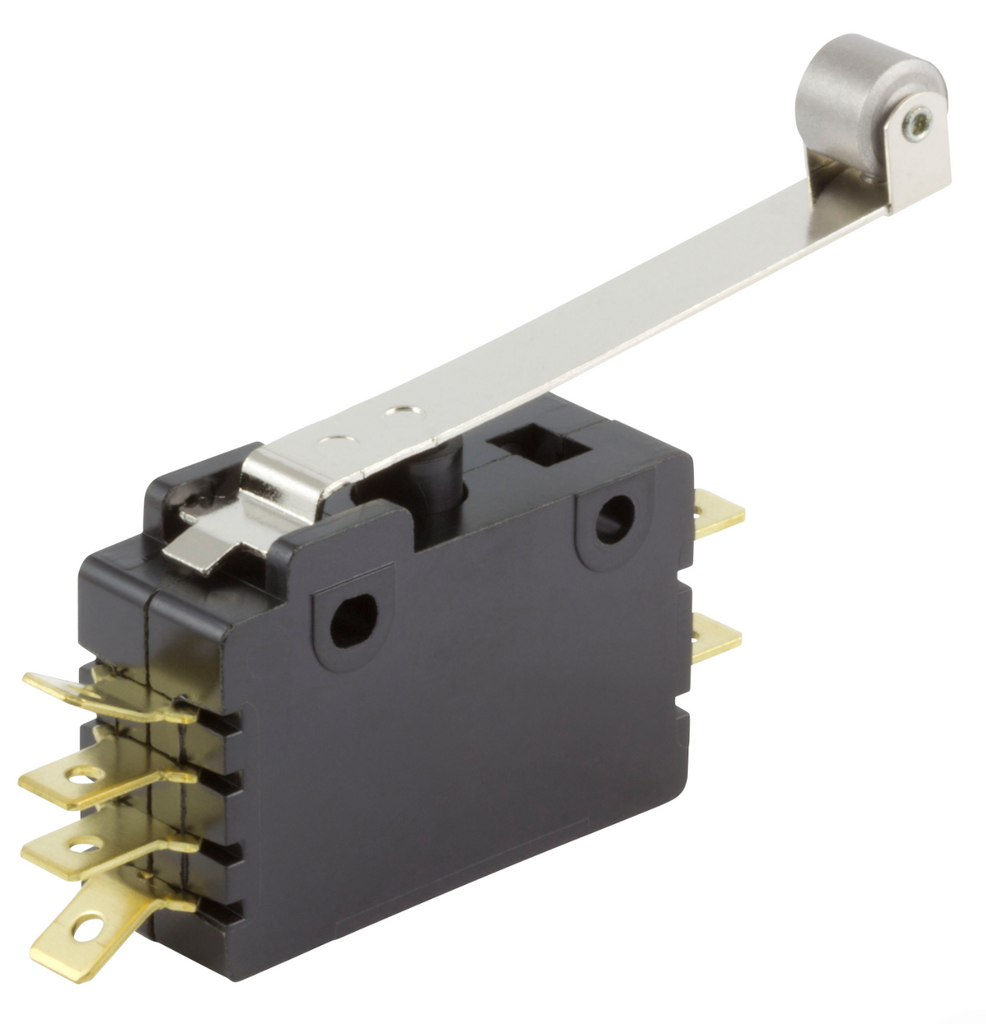

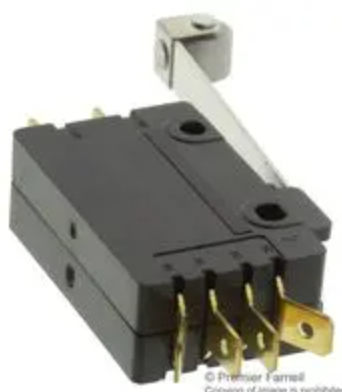

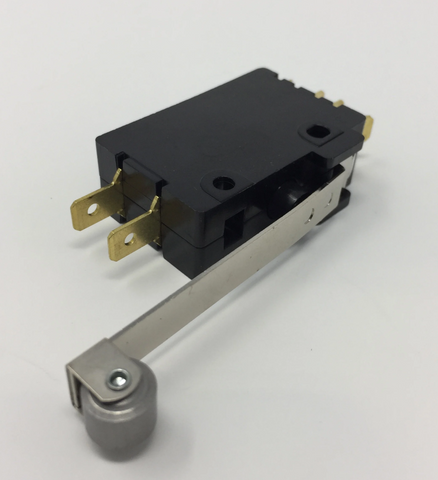

0E19‑00K0 is a robust, double-pole, double-throw (DPDT) snap-action microswitch, crafted for reliability in demanding applications. Featuring a smooth-operating roller lever actuator and quick-connect terminals, this switch ensures fast, secure connections in electrical systems. It’s designed to handle up to 15 A at 250 VAC, making it suitable for both industrial and consumer electronics environments.
Key Specifications
- Switch Type: Snap Action Microswitch (DPDT)
- Actuator Style: Roller Lever – thermoplastic standard-ratio lever
- Termination: 0.25″ (6.3 mm) Quick‑Connect tabs
- Current Rating: 15 A (AC)
- Voltage Rating: Up to 250 VAC
- Operating Force: Approximately 212 gf
- Temperature Rating: –40 °C to +105 °C (per DigiKey specs)
- Compliance: RoHS-compliant, no SVHC (Substances of Very High Concern) listed as of June 27, 2025
-
Additional Features: Long-life coil spring and snap-action mechanism, silver-alloy contacts, copper-alloy common terminal, and phenolic casing resistant to UL94HB flammability standards
Ideal Applications
This microswitch is perfect for:
- Industrial controls and automation systems
- Consumer electronics requiring fast, reliable actuation
- Circuit switching in machinery, panels, and equipment where space is limited and durability is essential
Why It Stands Out
- Reliable Snap-Action Performance: Ensures rapid, repeatable switching, beneficial for repetitive actuation scenarios.
- Gen-Ready Build: Silver alloy contacts and a durable phenolic casing provide both conductivity and ruggedness.
- Easy Integration & Maintenance: Quick-connect tabs make installation and replacement fast and tool-free.
- Compliance-Ready: Meets RoHS requirements and poses no concern for SVHC—ideal for environmentally conscious designs.
